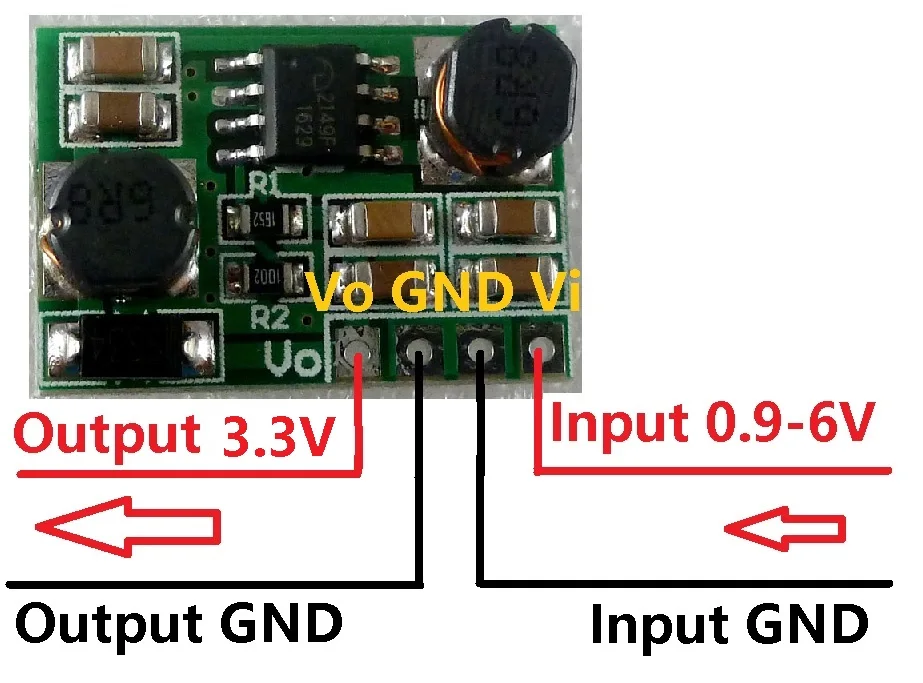

DC DC 0.9-6V to 3.3V Auto Buck Boost Step UP Step Down Converter Board Power Supply Module

DC DC 0.9-6V to 3.3V Auto Buck Boost Step UP Step Down Converter Board Power Supply Module
DC DC 0.9-6V to 3.3V Auto Buck Boost Step UP Step Down Converter Board Power Supply Module DC DC 0.9-6V to 3.3V Auto Buck Boost Step UP Step Down Converter Board Power Supply Module DC DC 0.9-6V to 3.3V Auto Buck Boost Step UP Step Down Converter Board Power Supply Module



Specifications:

Input voltage:  DC 0.9 - 6V(The maximum input voltage can not exceed 6.5V)
Output voltage: DC 3.3V(±5%)
Working frequency: 1MHZ
Efficiency:  61%-85%
Operating temperature range : -25~+85 ℃
Storage temperature range : -45~+125 ℃
Pin pitch:2.54mm
Size : 22mm x 15mm x 5.7mm
Weight : 2.6g

DD0603SA_3V3_1



DD0603SA_3V3_3

Applications:

Battery powered equipment
Breadboard Power Supply
ARM FPGA CPLD MCU Development board
Electrical tools
Small power motors
Camera, Video camera
Toy car
Power bank
LED Lighting
Wireless communication equipment
Audio equipment

Attention:

1. Input voltage can not be greater than the maximum input range.
2. Output power can not be greater than the maximum load for a long time.
3. Input power must be greater than the output power, because the power consumption of the module itself.

Package Incldued:

1 x DC DC 0.9-6V to 3.3V Auto Buck Boost Board





DC DC 0.9-6V to 3.3V Auto Buck Boost Step UP Step Down Converter Board Power Supply Module See detail
